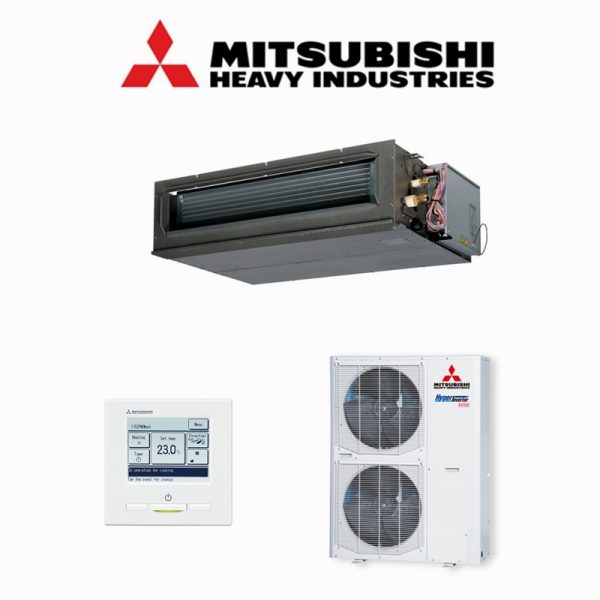

Mitsubishi Heavy Industries Inverter Ducted System FDCA140VNX-W / FDU140VH 14kW

FDCA140VNX-W / FDU140VH – 14.0 kW Single-Phase Ducted System  Capacity 14.0 kWSet FDU140AVNXWVHIndoor FDU140VHOutdoor FDCA140VNX-WPower Source (Outdoor Unit) 1 Phase 240 V 50 Hz Operation DataNominal Capacity Range | Cooling T1 (kW) | 14.0 (3.5-16.0)Heating H1 (kW) | 16.0 (2.7-18.0) Heating H2 (kW) | 15.50 Power ConsumptionCooling T1 (kW) | 4.22Heating H1 (kW) | 4.22Max Power Consumption (kW) | 7.10 Cooling T1 (A) | 18.5Heating H1 (A) | 18.5Inrush/Max Current (A) | 5, 30 EfficiencyEER (Cooling T1) | 3.32COP (Heating H1) | 3.79 Sound Levels (JIS C9612)Outdoor — Sound Power Level | 71 dB(A)Indoor — Sound Pressure Level | P-Hi:47 / Hi:40 / Me:35 / Lo:30 dB(A)Outdoor Sound Pressure | 54 dB(A) External Dimensions (HxWxD)Indoor | 280×1370×740 mmOutdoor | 1300×970×370 mmIndoor Weight | 54 kgOutdoor Weight | 97 kg Airflow & Static PressureSupply Air Connection | 170×1200 mmReturn Air Connection | 235×1280 mmExternal Static Pressure (Max) | 200 PaAirflow Indoor (Cooling/Heating) | P-Hi:800 / Hi:583 / Me:467 / Lo:367 L/s RefrigerantType, Amount & Pre-charge | R32 – 4.0 kg (pre-charged for 30 m) Installation DataRefrigerant Piping – Liquid Line | Ø9.52 mmGas Line | Ø15.88 mmConnection Method | FlareMax Pipe Length (One-Way) | 100 mMax Vertical Height Diff (O.U/I.U) | 50 m (OU above IU) / 15 m (OU below IU) Controllers & OptionsControllers | RC-E5, RC-EXZ3A, RCH-E3 or RCN-KIT4-E2Optional Motion Sensor | LB-KIT2Demand Response (AS4755) | YesOperating Limits | Cooling –15 °C to 50 °C / Heating –20 °C to 20 °C   An established and reliable choice in the MHI ducted range, this single-phase 14kW system delivers strong performance and wide operating support for Australian conditions.
