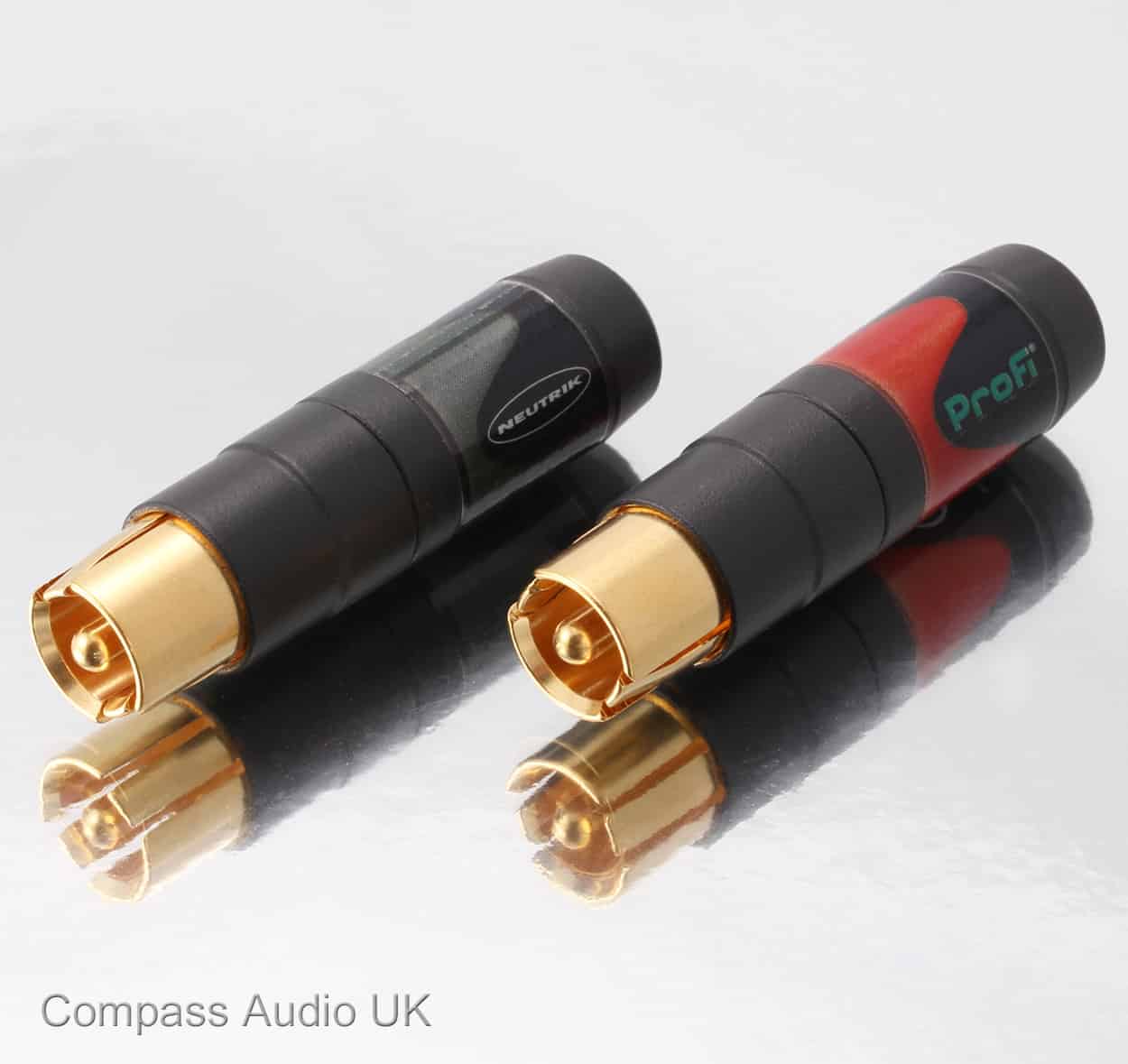

NEUTRIK PROFI Phono RCA Plugs NF2C-B/2

Description NEUTRIK PROFI Phono RCA Plugs NF2C-B/2 NEUTRIK PROFI Phono RCA Plugs NF2C-B/2 are high quality, heavy duty, all metal phono plugs, machined from a brass, black shell with gold plated contacts. Neutrik PROFI RCA connectors are designed to be used with the best audio and studio components for optimum sonic performance without degradation in sound. NEUTRIK PROFI Phono RCA Plugs NF2C-B/2 are industry standard connectors, constructed from a hard gold-plated metal connector and accept cable up to 7.3mm diameter; incorporating cable clamping or chuck type strain relief, ensuring a consistently high level of performance and connectivity. The spring loaded ground contact makes ground before signal and breaks signal before ground: retractable element with separate wedge contacts keeps the shell in the front position when engaged thus providing a direct and strictly coaxial electrical connection from the socket via the shell to the cable shield.   NEUTRIK PROFI NF2C-B/2 Features & Benefits Makes ground before signal contact and breaks signal before ground No more disturbing noise and broken speaker cones Precisely machined to most demanding quality standards Neutrik unique chuck type strain relief Gold plated contacts Sleek barrel with soft touch surface and coloured shrink sleeve Improved ground solder lug for ease soldering Supplied in pairs Technical Information: Electrical: Capacitance between contacts ≤ 7 pF Contact resistance >10G mΩ Dielectric strength1,5 kVdc Insulation resistance > 5 GΩ Rated current per contact depends on mating connector / A Rated voltage < 50 V Mechanical: Cable O.D.3.0 – 7.3 mm Lifetime> 2000 mating cycles Wire size1,5 mm² Wire size16 AWG Wiring Solder contacts Material: Contact plating: 5 µm Au over 5 µm Ni Contacts: Brass (CuZn39Pb3) Insert: PBTP 20 % GR Shell: Brass (CuZn39Pb3) Strain relief: Polyacetal (POM) Environmental: Flammability UL 94 HB Standard compliance IEC 601-14 Protection class IP 40 Solderability: Complies with IEC 68-2-20 Temperature range: -30 °C to 80 °C   NEUTRIK PROFI NF2C-B/2 Installation of the Neutrik PROFI plugs requires soldering (large soldering area, rapid-flow plating) to achieve optimum sonic performance. Supplied in Pairs.
