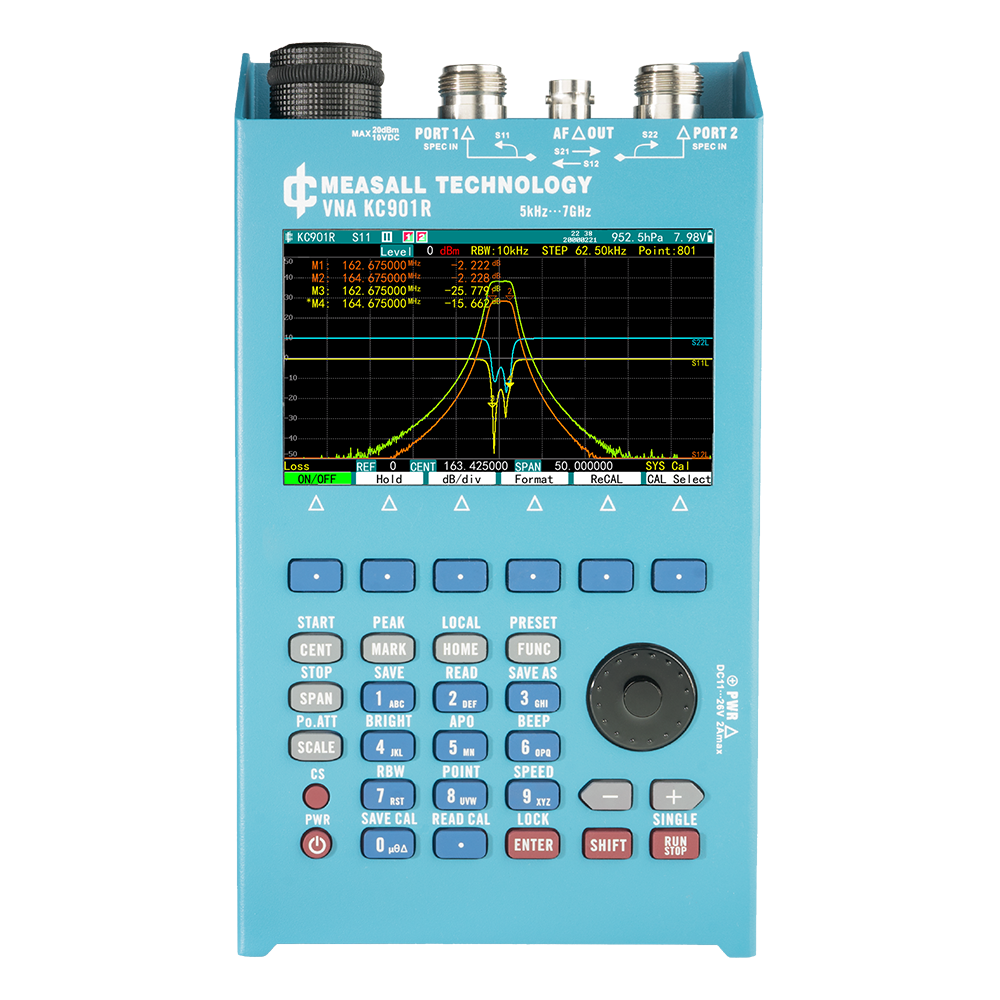

MEASALL Dual Ports Handheld Network Analyzer KC901R 5kHz-7GHz

KC901 Dual-port network analyzer introduction page click here Product Highlight 5KHz-7GHz frequency range 1Hz frequency resolution >42dB directionality (after calibration) Transmission dynamic range 100dB (4GHz), 90dB (7GHz) Multi calibration support Built-in RF&AF generator function Lightweight, reliable and easy to operate Product Features S11/S12/S21/S22 measurement Phase/Return loss/VSWR/SmithChart/Impedance measurement result display Spectrum display and Field mode RF/AF generator with modulation and level adjusting Data save in TF cards PC software connection Technical Parameter Obj Condition Typical parameter Note KC901J KC901K KC901R KC901T Measurement speed RBW=30kHz, per point 0.8ms When calibration is turned on, one set of measurements is taken in each scanning point of S21/S12 in both forward and reverse directions, with the speed reduced to ½. RBW=10kHz, per point 1ms RBW=6kHz, per point 1.2ms RBW=1kHz, per point 3ms RBW=10K,201pt per screen 0.2s Output level for all modes (maximum gain) 1MHz-4GHz 3dBm 4GHz-6GHz 0dBm 0dBm 6GHz-10GHz -3dBm 10GHz-22GHz Output adjustable range 60dB Noise floor 1MHz-4GHz -107dBm RBW=1kHz 4GHz-6GHz -100dBm -100dBm 6GHz-22GHz -90dBm Dynamic range for transmission measurements 1MHz-1GHz 100dB Equivalent to transceiver isolation 1GHz-4GHz 93dB 4GHz-10GHz 90dB 80dB 10GHz-22GHz Magnitude uncertainty of transmission measurements 1MHz-10GHz ± (0.2 0.02L) insertion loss is less than the isolation by more than 20 dB 10GHz-22GHz ± (0.3 0.02 L) Return loss uncertainty 3dB<RL<25dB ± (0.5 0.1 RL) At <20dB Uncertainty of phase 100kHz-1GHz 2° Return loss <20dB 1GHz-10GHz 5° 7° 10GHz-22GHz VSWR of the port 1MHz-10GHz 1.5 static value Tracer noise RMS value 0.005dB Loss <10dB IF Feedthrough Suppression 30dB Frequency stability, per year 1ppm Supply Voltage DC 11V-32V (charger socket), 5V (Type-C port) AC Power Adapter 105V-230V internal battery 6.5V-8.4V Damage level All Ports DC15V, 20dBm Screen resolution 800×480px Dimensions 200×114×46mm (L×W×T) Weight Instrument(with battery) 1.3kg Whole package in standard configuration 2.5kg What in package KC901R *1 User manual *1 Calibration certification *1 DC adapter *1 Strap *1
