MEASALL Dual Ports Handheld Network Analyzer KC901K 5kHz-4GHz

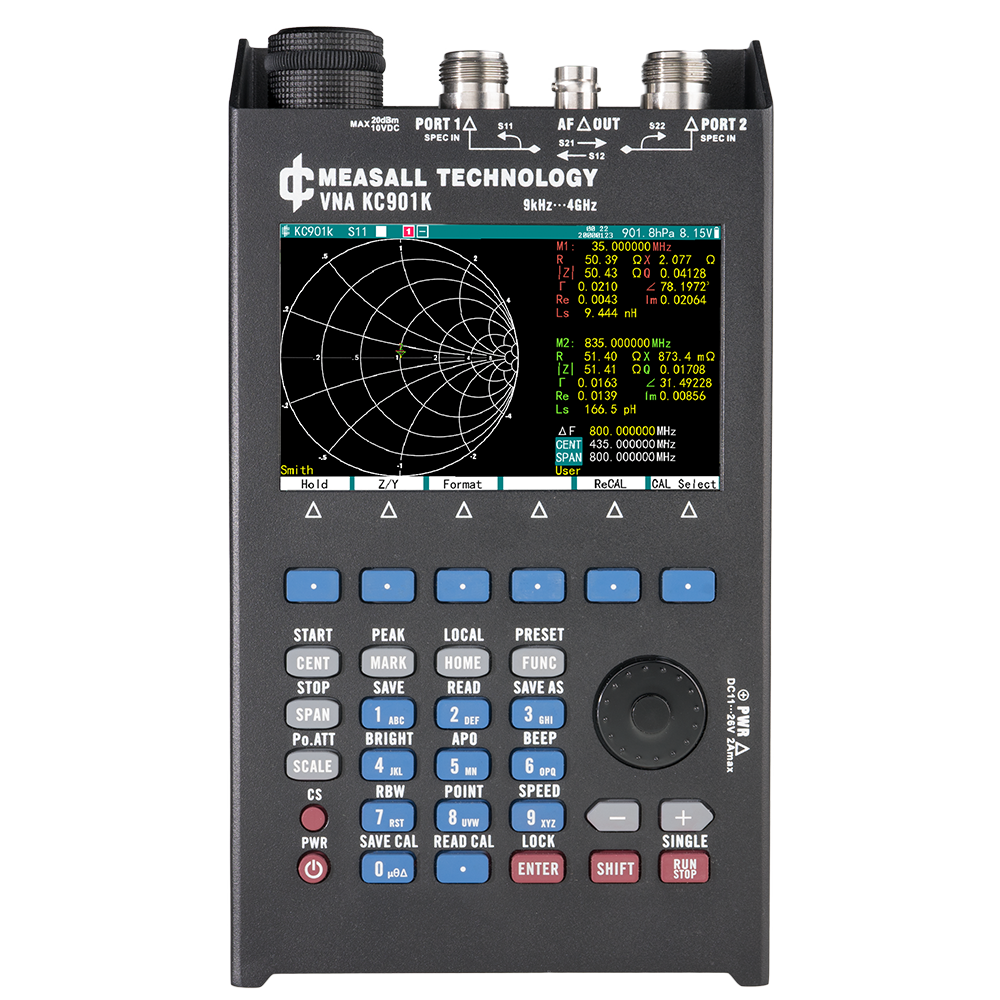

KC901 Dual-port network analyzer introduction page click here Dual-Port Network Analyzer KC901K 5kHz~4GHz frequency range Dynamic range 100dB Multi calibration support Built-in RF & AF generator function 60dB RF-source attenuation range Lightweight, reliable and easy to operate S11/S21/S12/S22 dual-port network analysis Phase/Loss/VSWR/SmithChart/Impedance display 4 synchronous receivers and 24-bit ADC Better amplitude measurement linearity The KC901K leverages precision RF front-end circuitry coupled with a high-performance ADC, enabling it to achieve trace noise levels < 0.005dB. This capability ensures exceptional accuracy and sensitivity in signal detection and measurement processes. 100dB Dynamic Range Anti-crosstalk circuit design and strict shielding allows the KC901K to obtain a better dynamic range of transmission measurements. Multiple Calibration Methods Response and Enhanced Response Calibration Support cal-kit parameters input to precision calibration Calibrator female/male conversion Cable cancelling setting support Built-in utilities Based on the network analyzer architecture We add Spectrum, RF-source, Comparator, AF-source and Field-meter functions. AF source Generate audio frequency signals, support CW and FM/ASK modulation, BNC or RF port routable. Spectrum mode RBW can set 1kHz-30kHz, discrete sweeping in range. RF Source Generate RF signals, support CW signal and FM/ASK modulation, 60dB attenuation range. Field meter Measuring single point RF level, field strength calculate. Comparator Compare the level and phase (time) of two channel. Can setting different triggers. Multiple data connection and storage method Free KCSDI software connection Type-C port for data transfer and battery charge TF-card slot for data storage RJ-45 port for ethernet connection 5.5×2.5 DC jack with wide range power input Main Parameters Name Conditions Minimum Typical Maximum Notices Frequency range valid value 5kHz 4GHz Frequency range Allow set 0 4GHz Sweep frequency range valid value 1kHz 4GHz Maximum Output Level -6dBm 0dBm 6dBm Internal attenuation range 0 60dB Receiver normalized noise floor -130dBm/Hz S21 dynamic range 100dB RBW:1kHz Directionality 4GHz 42dB Trace noise RMS, Port through 0.005dB Sweep speed 30kHz 0.5ms/pt Sweep points 101 10001 Temperature -40C 55C Depends on the battery Battery life 3h Depends on different function Weight 1.3kg 1.5kg Volume Connector included 210x120x46mm(LxWxTh) Product Highlight 5KHz-4GHz frequency range 1Hz frequency resolution >42dB Relative directionality Transmission dynamic range 100dB Multi calibration support Built-in RF&AF generator function Lightweight, reliable and easy to operate Product Features S11/S12/S21/S22 measurement Phase/Return lose/VSWR/SmithChart/Impedance measurement result display Spectrum display and Field mode RF/AF generator with modulation and level adjusting Data save in TF cards PC software connection What in package KC901K *1 User manual *1 Calibration certification *1 DC adapter *1 Strap *1
