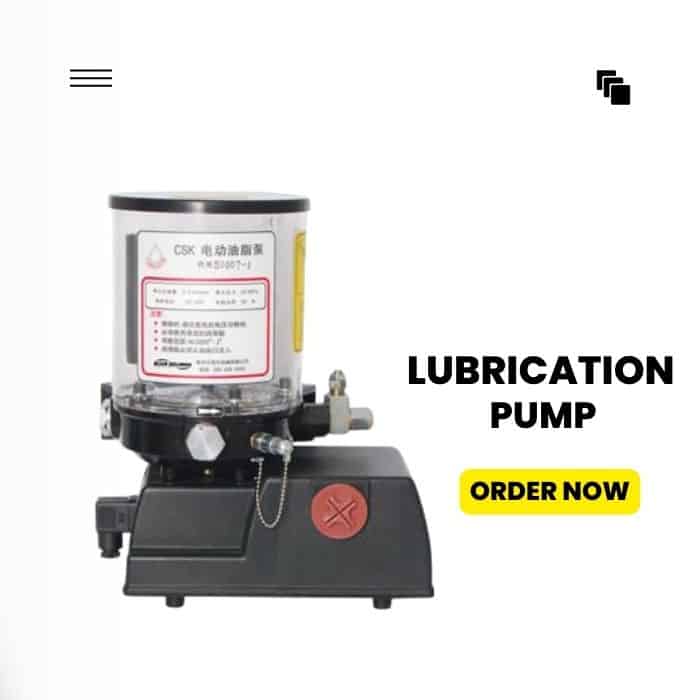

CSK Electrical Bijur Grease Pump

Stop Machine Breakdowns with Smart Auto-Lubrication Your machines need grease to run properly. Skip one lubrication cycle and you’re looking at expensive repairs and lost production time. The CSK Electrical Bijur Grease Pump takes care of this automatically – no more missed schedules, no more guessing, no more costly breakdowns. This isn’t complicated technology. It’s a simple DC motor that pushes exactly the right amount of grease to your machines at exactly the right time. Set it once, and it works 24/7 for months without touching it. Bottom Line: Spend $1,400 once to save $20,000 in breakdown costs every year. Complete Model Range & Specifications Model Voltage Power Output Rate Outlets Reservoir Best For CS160 12VDC 50W 5.5 ml/min 1-3 2L 4L options Battery powered equipment CS260 24VDC 50W 5.5 ml/min 1-3 2L 4L options Most industrial machines CS360 220VAC 60W 3.0 ml/min 1-3 2L-8L options European equipment CS460 380VAC 60W 3.0 ml/min 1-3 2L-8L options Heavy industrial CS560 110VAC 60W 3.0 ml/min 1-3 2L-8L options North American standard Universal Specifications Maximum Pressure: 25 MPa (3,625 PSI) – handles high-pressure systems Grease Types: NLGI 000# to 2# (soft to medium consistency) Outlet Options: 1 to 5 outlets available Thread Connection: NPT 1/4″ standard Outlet Configuration: 1-3 standard, up to 5 on special order Key Differences: DC vs AC Models DC Models (CS160, CS260) – Higher Output Output: 5.5 ml/min (83% more than AC models) Reservoir: 2L or 4L options Best For: Fast-moving machinery, high-frequency lubrication Advantage: More grease per cycle, better for demanding applications AC Models (CS360, CS460, CS560) – Industrial Standard Output: 3.0 ml/min (perfect for standard lubrication) Reservoir: 2L, 4L, 6L, or 8L options Best For: Continuous industrial operations Advantage: Larger reservoir options, standard industrial voltage Real-World Applications Manufacturing Lines CNC Machines: Way lubrication every 2-4 hours automatically Conveyor Systems: Bearing lubrication prevents seizure Stamping Presses: Slide lubrication extends die life Heavy Equipment Excavators: Boom and bucket pin lubrication Cranes: Slewing bearing and boom pin maintenance Mining Equipment: Crusher bearing and conveyor systems Process Industries Food Processing: FDA-approved grease for moving parts Chemical Plants: Resistant to harsh environments Paper Mills: High-humidity operation capability How Much Grease Do You Actually Need? Output Comparison by Model Application Type Recommended Model Daily Grease Output Reservoir Life Light machinery CS260 (24VDC) 132 ml (5.5×24 hrs) 15 days (2L) Standard equipment CS360 (220VAC) 72 ml (3.0×24 hrs) 28 days (2L) Heavy duty CS260 4L reservoir 132 ml daily 30 days Rule of Thumb: Most machines need 10-50ml of grease per day. A 2L reservoir lasts 40-200 days depending on your cycle settings. Installation & Setup Guide What Voltage Do You Have? 12VDC: Battery systems, mobile equipment → CS160 24VDC: Industrial control systems → CS260 110VAC: North American plants → CS560 220VAC: International standard → CS360 380VAC: Heavy industrial → CS460 Simple 4-Step Installation Mount the pump vertically near your equipment Connect power according to your voltage (12V/24V DC or 110V/220V/380V AC) Run grease lines using NPT 1/4″ fittings Fill reservoir with NLGI 000# to 2# grease Installation Time: 1-2 hours including testing Programming Your Cycle Factory Setting: 5 minutes ON, 6 hours OFF (works for 80% of applications) Heavy Duty: 5 minutes ON, 2 hours OFF Light Duty: 2 minutes ON, 12 hours OFF Custom: Adjust using DIP switches from 4 minutes to 15 hours Reservoir Options & Operating Costs Choose Your Reservoir Size Reservoir Size Available Models Operating Days Best For 2L All models 15-60 days Single machines 4L DC AC models 30-120 days Multiple points 6L AC models only 45-180 days Production lines 8L AC models only 60-240 days Heavy industry Annual Operating Cost Breakdown Grease Consumption: $200-400 (depends on cycle settings) Power Consumption: $25-50 (very low power draw) Maintenance: $100-200 (minimal service required) Total Annual Cost: $325-650 Compare to Manual Lubrication: $3,000-8,000 in labor costs alone Frequently Asked Questions Q: Which voltage should I choose? A: Choose based on what power you have available. 24VDC (CS260) is most popular for industrial use. 220VAC (CS360) if you want to plug into standard outlets. Q: How much grease will it use? A: With factory settings, expect 130ml/day (DC models) or 70ml/day (AC models). A 2L reservoir lasts 15-28 days. Q: Can I use any grease? A: Yes, any standard industrial grease from NLGI 000# (very soft) to 2# (medium firm). Lithium, calcium, synthetic – all work fine. Q: What if I need more outlets? A: Standard models have 1-3 outlets. We can supply up to 5 outlets on special order. Each outlet works independently. Q: How do I know it’s working? A: Built-in LED indicators show pump status. You’ll also see grease coming out of the lines during operation cycles. Q: What’s the difference between 3ml/min and 5.5ml/min output? A: DC models (5.5ml/min) deliver 83% more grease per minute. Choose DC for fast-moving machinery or when you need more frequent lubrication. Q: Can it work in dirty environments? A: Yes, IP56 rating means it’s protected against dust and water spray. Works fine in typical industrial conditions. Q: How long does it last? A: Typical service life is 8-12 years with normal maintenance. Bijur has been making these pumps for decades – they’re built to last. Order Information Standard Configurations Model Outlets Reservoir Typical Price CS160-1 Single 2L $1,200-1,350 CS260-1 Single 2L $1,250-1,400 CS260-3 Triple 2L $1,450-1,650 CS360-1 Single 2L $1,300-1,450 What’s Included Complete pump with motor and controller Mounting hardware and brackets Wiring connections Programming instructions 2-year factory warranty Optional Accessories Larger Reservoirs: 4L, 6L, 8L (AC models) Level Switches: Low grease level alarms Pressure Switches: System monitoring Distribution Blocks: Multiple lubrication points Technical Support Need help choosing the right model? Our technical team provides free consultation to match the right pump configuration to your specific application. Phone: 1-800-BIJUR-TECH Email: [email protected] Simple, reliable, automatic lubrication. Choose your voltage, set your timing, fill with grease. Your machines stay running while you focus on production. Related: Grease Pump hub — types, selection guides, and troubleshooting.
